New and updated data is available at our web shop www.finjector.com (also in English)

We offer only top quality ignition parts. All these parts can be used with very high power motors.

Why use copper wire ignition cables? For the power! All  Ignition leads have exactly the same resistance  = all spark plugs will get the same ignition energy. Notice: Use the ignition connectors with resistance at one or both ends.

We can produce ignition cables at any lenght you need.

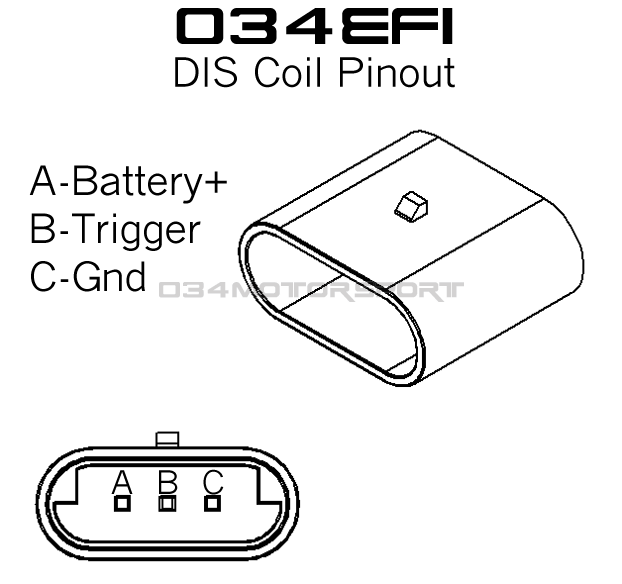

 034 ignition coil.jpg (30011 bytes) High power ignition coil with built-in driver from 034 Motorsport. 034EFI High Output DIS coil with built-in transistorized driver allow a high-current, 20 Amp driver to be integrated with one of the most powerful coils on the market, giving over 60k-100k Volts of spark energy. Coil includes primary connector and pins. Pin layout, click here. 034COIL1
034Coil2.jpg (15969 bytes) 034 High Output DIS Coil. Powerful ignition coil, easily capable of over 100kV output. Compact design for use in multiples in direct fire applications (one per spark plug), as single coil in distributor applications. Coil includes primary connector and pins. Pin layout, click here 034COIL2
PRO0U.JPG (19878 bytes) High voltage connector for 034 coil and for spark plug. Black silicone rubber, No resistor, screw fitting to ignition cable, SAE connector. Use only with copper wire ignition cable.
PRO0U
PRO5M_.gif (7798 bytes) High voltage connector for 034 coil and for spark plug. Red silicone rubber, 5 kOhm resistor, screw fitting to ignition cable, SAE connector. Use only with copper wire ignition cable. PRO5U

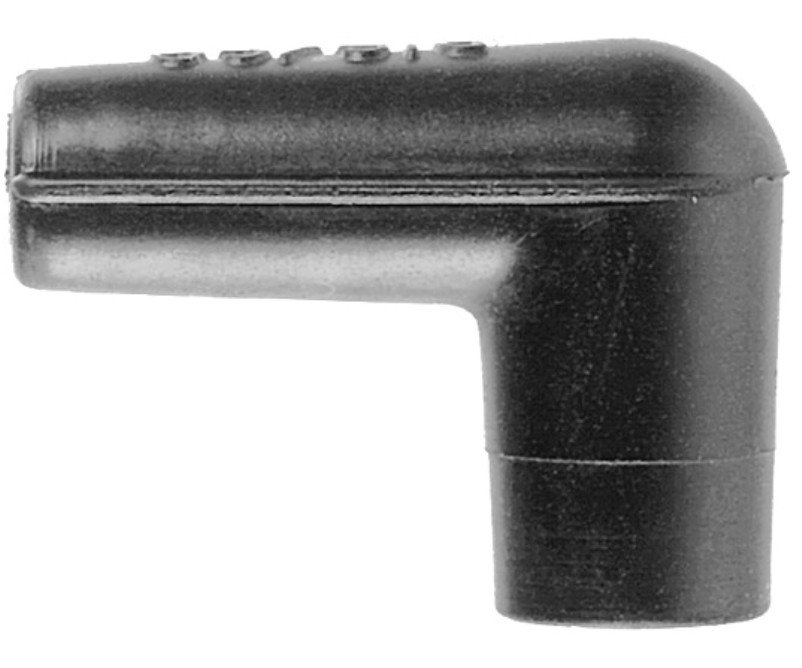

GW11.jpg (148069 bytes) Protection cover, silicone rubber, high voltage connector for 034 coil and for spark plugs. Use with terminal 0901300007. No resistor GW11
0901300007.JPG (69317 bytes) 90 deg. Zinc plated SAE terminal with snap, use only with GW11 cover. For 7mm ignition cable. No resistor. 0901300007
IC1.jpg (65083 bytes) High quality, flexible Copper Wire Ignition cable with silicone outside surface.  Diameter 7 mm, fibre glass braiding. Heat resistance up to 250 Celsius. IC1
0356351053.gif (6232 bytes) Spark plug connector with 2 kOhm resistor. Spark plug connector SAE, total llength 154 mm. Usable only with copper wire ignition cable. The cable connector 0901300003 will need between copper wire cable and spark plug connector. For spark plug with wrench size of 16 mm. More details click here. 0356351053
0901300003.JPG (73839 bytes) Cable connector between copper wire ignition cable and spark plug connector 0356351053. Special pliers will need to crimp this connector to copper wire ignition cable. 0901300003
ZLE168_.JPG (8305 bytes) Spark plug connector with 5 kOhm resistor. Spark plug connector SAE, total length 170 mm. Usable only with copper wire ignition cable. The cable connector 0901300002 will need between copper wire cable and spark plug connector. For spark plug with wrench size of 16 mm. ZLE168
077905447.JPG (18634 bytes) Spark plug connector with 5 kOhm resistor. Spark plug connector SAE, total llength 159 mm. Usable only with copper wire ignition cable. The cable connector 0901300002 will need between copper wire cable and spark plug connector. For spark plug with wrench size of 16 mm. 077905447
0901300002.jpg (67754 bytes) Cable connector between copper wire ignition cable and spark plug connector ZLE168 or 077905447. Special pliers will need to crimp this connector to copper wire ignition cable 0901300002
0356351053_C.JPG (7329 bytes) Spark plug connector 0356351053 with 90 cm copper wire ignition cable. Ready for use with PRO0U or PRO5M. Cut the cable and screw the coil side connector to the cable. For spark plug with wrench size of 16 mm 102ME
1354489095.jpg (288448 bytes) Spark plug connector, 5 kOhm resistor, total length 75 mm, plug connector SAE, cable connector 1 350 521 007. For spark plug with wrench size of 16 mm. More details, click here 1354489095

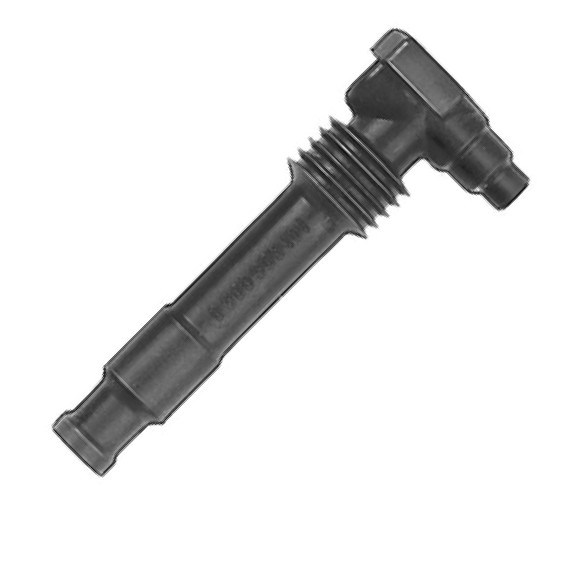

ZL104.jpg (25585 bytes) Spark plug connector, total length 114 mm, SAE, no resistor. Use with cable connector 0901300003. For spark plug with wrench size of 16 mm. More details, click here ZL104
ZL104.jpg (25585 bytes) Spark plug connector, total length 129 mm, SAE, no resistor. Use with cable connector 0901300003. For spark plug with wrench size of 16 mm ZL105
ZLE200.JPG (44978 bytes) Spark plug connector, total length 124 mm, SAE, 1 kOhm resistor. Use with cable connector 0901300003 ZLE200
A very simple alternative to spark plug connector or straight connector to 034-coil. Cable connector 0301300004 can be used with copper wire ignition cable or resistor ignition cable. No resistor.

Silicone cover GS7 has toothing inside. That allows the better assembly to spark plug or 034 coil. When this connector is used with copper wire ignition cable, resistor connector is needed at the other end of the cable.

Cable connector 0301300004 + cover GS7



0901300199.JPG (41245 bytes) 0901300200.jpg (70435 bytes)Cable connector between ignition cable and distributor cap or ignition coil. Special pliers will need to crimp this connector to ignition cable. 0901300200_pic.jpg (6789 bytes)Centering sleeve 0301300200 is including. For pin diameter 4 mm (most used). 0901300199
0010020015.JPG (16895 bytes) Silicone cover for 7 mm ignition cable. Total llength 57 mm, inside diameter 18 mm. For ignition coil or distributor cap. 0010020015
